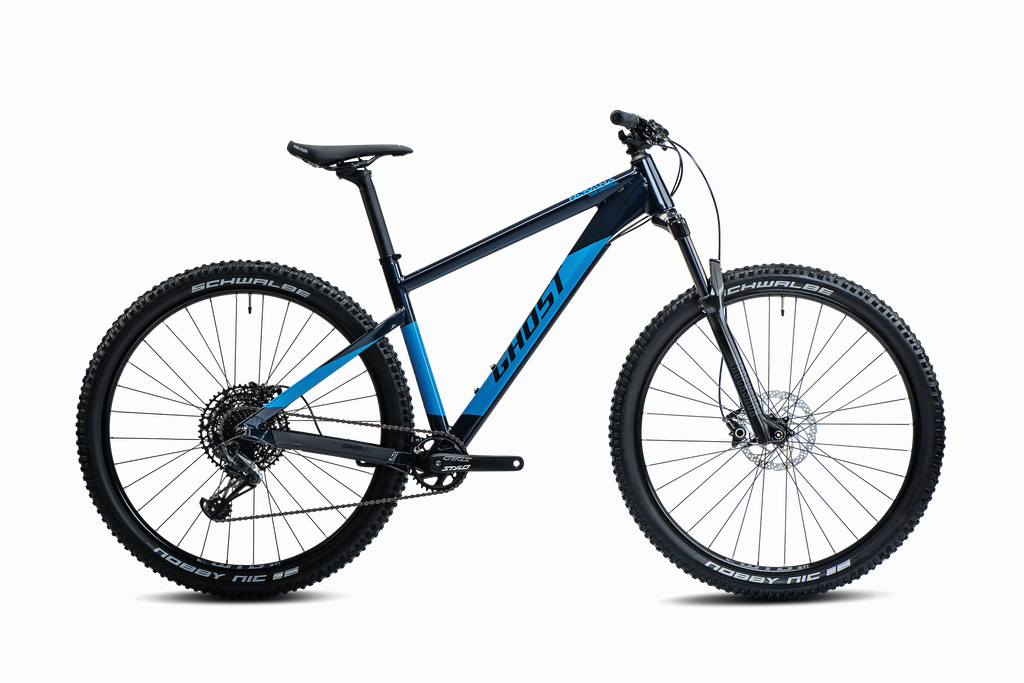

Ghost Nirvana Tour SF Universal

Bike Geometry
Bottom bracket drop [mm]:
· 84 mm
· 79 mm
· 74 mm
Chain stay length [mm]:
425 mm
Fork total length [mm]:
0 mm
Head tube angle:
67.5 degrees
Head tube length [mm]:
· 100 mm
· 120 mm
· 140 mm
Reach [mm]:
· 428 mm
· 457 mm
· 485 mm
Stack [mm]:
· 643 mm
· 656 mm
· 670 mm
Stand over height [mm]:
· 717 mm
· 735 mm
· 756 mm
Seat tube angle:
74 degrees
Seat tube length [mm]:
· 441 mm
· 465 mm
· 489 mm
Top tube length [mm]:
· 612 mm
· 645 mm
· 677 mm
Wheelbase [mm]:
· 1140 mm
· 1176 mm
· 1212 mm
Brake system
Brake Front Mount:
Post Mount
Brake Rear Mount:
Post Mount
Brake Front Description:
Shimano, Hydraulische Scheibenbremse, BR-MT410, 180 mm
Brake Rear Description:
Shimano, Hydraulische Scheibenbremse, BR-MT410, 180 mm
BrakeLever Description:
Shimano, BL-MT401
Brake Rotor Description:
Shimano, SM-RT30 180 mm, Centerlock

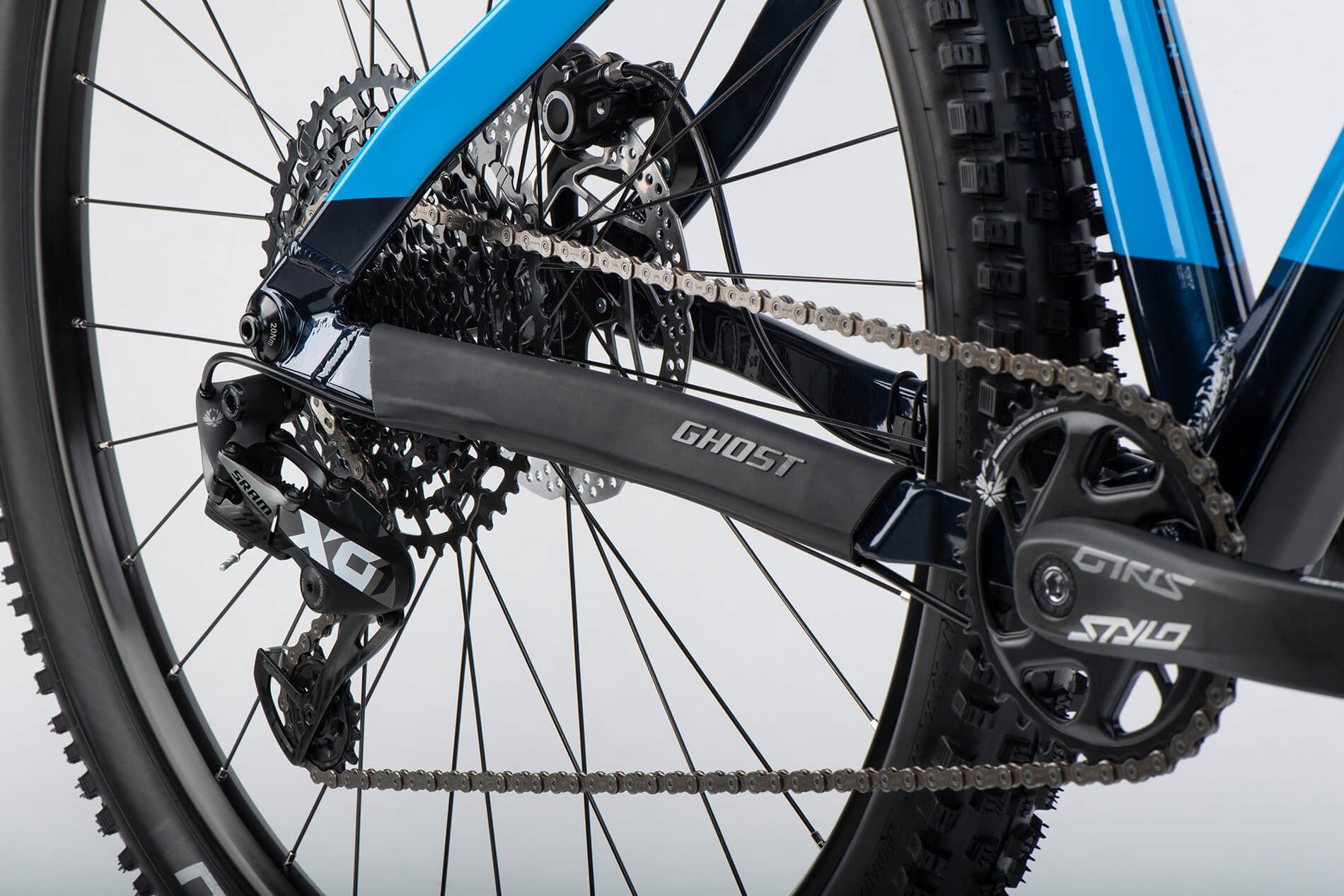

Drivetrain
Cassette Teeth:
11-50T
Crankset Teeth:
32T
Crankset Type:
single
Number Of Gears:
12
Pedal Inclusive:
Nein
Bottom Bracket Description:
Sram, BSA, Power Spline 118/73
Cassette Description:
Sram, PG-1210 Eagle, HG
Chain Description:
Sram, SX Eagle 12s
Crankset Description:
Truvativ, Stylo 6K
Derailleur Hanger Description:
Jovial, Hanger Nirvana
Derailleur Rear Description:
Sram, X01 Eagle 12s
Gear Description:
Sram, Derailleur
Shifter Right Description:
Sram, Triggershift, SX Eagle-SL
Frame and more
Framesize Convection:
· S
· M
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Hardtail
Travel Front:
120 mm
Front Fork Description:
Rockshox, Recon Silver RL 120 mm

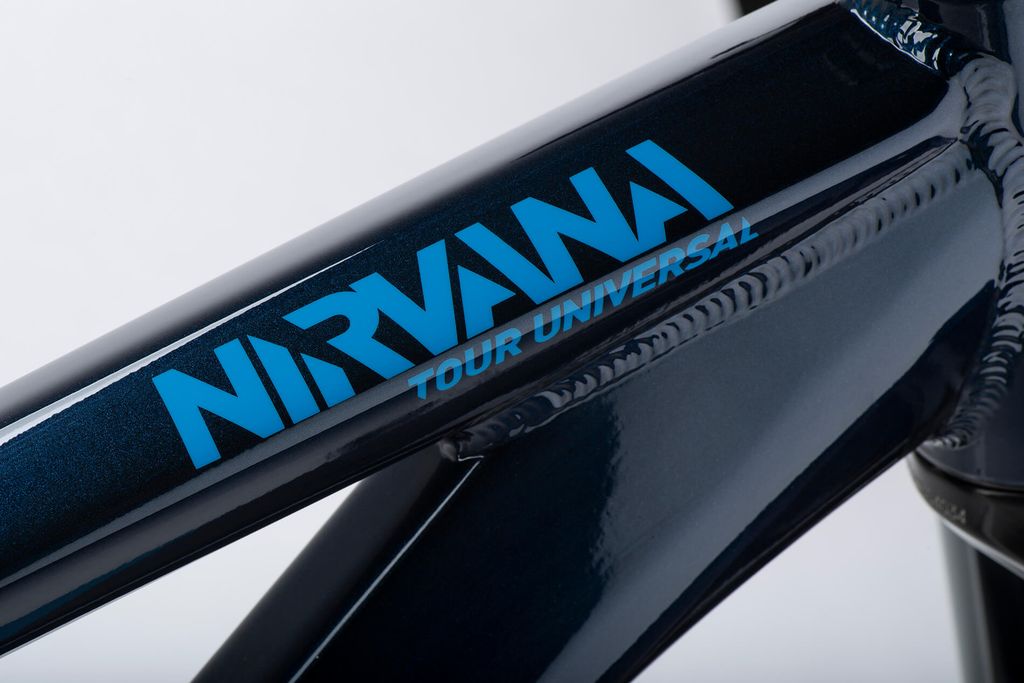

Frame Description:
NIRVANA AL, Aluminium, Uni

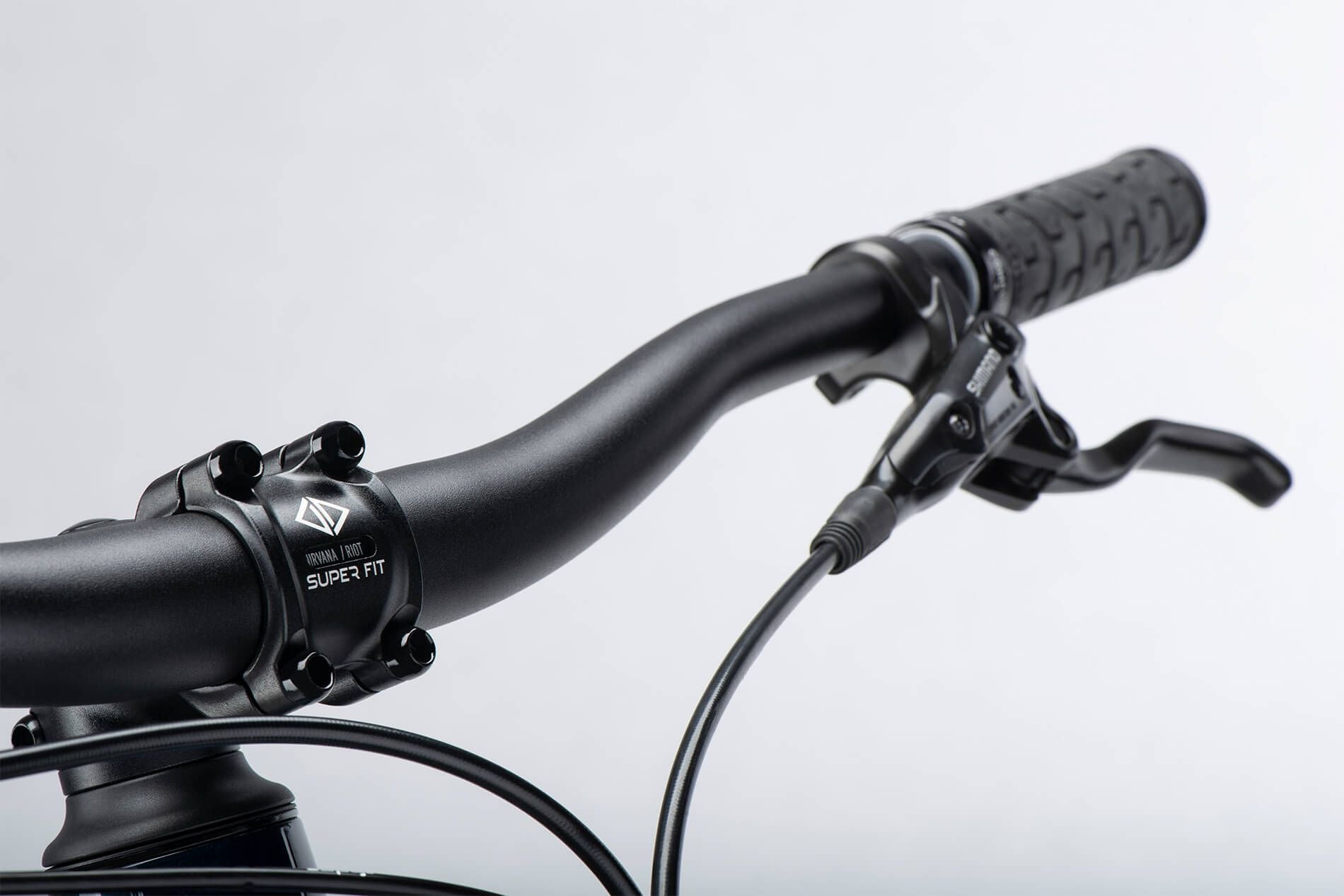

Handlebar and Saddle
Handlebar Diameter:
31.8 mm
Handlebar Material:
Aluminium
Handlebar Rise:
· 20
· 27
· 40
Handlebar Width:
· 720 mm
· 740 mm
· 760 mm
Seatpost Material:
Aluminium
Stem Length:
45 mm
Handgrip Description:
Production Privee, CR35
Handlebar Description:
Ghost, Flat bar, Ground Fiftyone Race Dia. 31.8 mm
Headset Description:
Ghost, Strummer 1-1/8
Saddle Description:
Selle Italia, Adjustable
Seatpost Description:
Kalloy, Non Suspension, SP-FG101 Length: 400 mm, Dia. 34.9 mm, 400 mm
Stem Description:
Ghost, Ground Fiftyone Dia. 31.8 mm
Wheels and wheel components
Wheel Size:
29
Hub Front Description:
Shimano, HB-MT400-B 15x110 mm
Hub Rear Description:
Shimano, FH-MT400-B 12x148 mm
Rim Description:
WTB, ST i25
Rim Rear Description:
WTB, ST i25
Spoke Description:
DT Swiss, FACTORY 2.0
Tyre Description:
Schwalbe, Nobby Nic Performance 2.35
Tyre Rear Description:
Schwalbe, Nobby Nic Performance 2.35
Wheelsize Description:
29, 29
