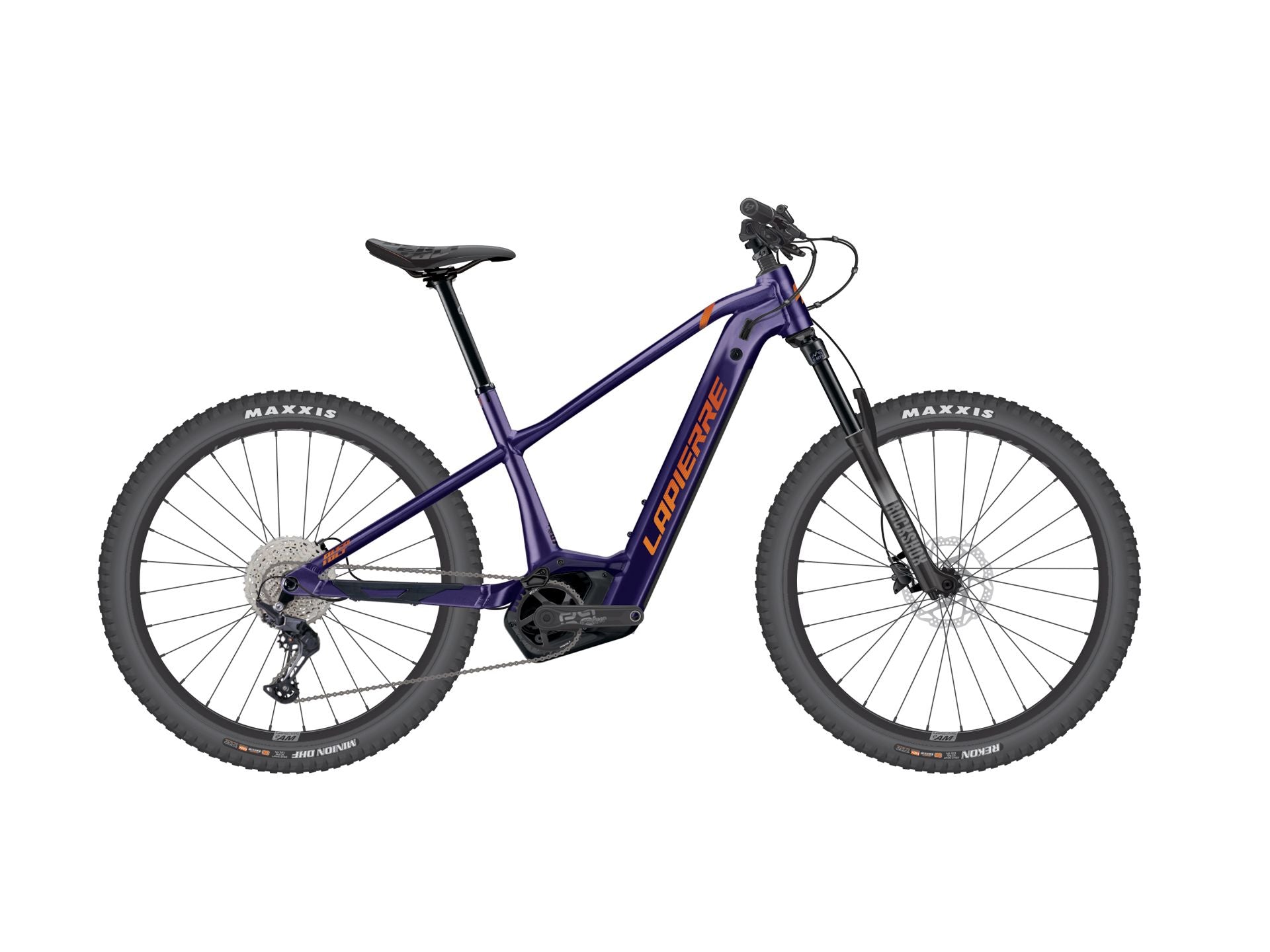

Lapierre Overvolt HT 9.7 750Wh

Rahmen und mehr

Gabel: RockShox 35 Silver TK Coil 15x110mm 29'' 120mm travel (e-MtB decals)
Fender compatible
Rahmen: NEW Overvolt HT integrated Bosch Supreme 5 alloy (UDH Dropout + kickstand & fenders ready)
Vorbau: Lapierre CNC, 0°, Ø: 31.8mm, L: 45mm (S/M), 50mm (L/XL)

Schaltung und Bremsen

Pedale: VP VPE-527
Kette: KMC E11 Turbo 11s
Kassette: Shimano Deore CS-M5100 11-51T 11s
Kurbelsatz: Lapierre Overvolt ISIS 160mm (S/M) / 165mm (L/XL) + E13 steel ring 34T
Schaltwerk: Shimano Deore RD-M5100, 11s
Schalthebel: Shimano Deore SL-M5100 11s

Lenker und Sattel

Griffe: Lapierre grips, S/M: small diameter, L/XL: large diameter
Sattelstütze: Lapierre dropper, Ø: 31.6mm, travel 100mm (S), 130mm (M), 150mm (L/XL) + Shimano lever
Lenker: Lapierre alloy 6061DB, Width: 760mm, Rise: 15mm (S/M), 30mm (L/XL), Ø: 31.8mm
Sattel: Selle Royal Vivo

Elektrische Teile

Display: Led Remote
Batterie: LED Remote
Motor: BOSCH BES3

Räder und Komponenten

Außenreifen vorne: Maxxis, front: 27.5x2.6 (S) 29x2.5 WT (M/L/XL) Minion DHF, 60TPI, EXO, TR rear: 27.5x2.6 (S) 29x2.4 (M/L/XL) Rekon 60TPI, EXO, TR
Felge vorne: Lapierre eAM+ 32H, 584x35 (S) 30-622 (M/L/XL) Tubeless Ready
Außenreifen hinten: Maxxis, front: 27.5x2.6 (S) 29x2.5 WT (M/L/XL) Minion DHF, 60TPI, EXO, TR rear: 27.5x2.6 (S) 29x2.4 (M/L/XL) Rekon 60TPI, EXO, TR
Felge hinten: Lapierre eAM+ 32H, 584x35 (S) 30-622 (M/L/XL) Tubeless Ready
Hinterradnabe: Shimano MT400, boost thru axle 32H Center Lock
Vorderradnabe: Shimano MT400, boost thru axle 32H Center Lock

Bremssystem

Scheibenbremse vorne: Shimano SMRT30 203mm (front) / RTEM300 with Magnet 180mm (S/M), 203mm (L/XL) (rear) centerlock
Scheibenbremse hinten: Shimano SMRT30 203mm (front) / RTEM300 with Magnet 180mm (S/M), 203mm (L/XL) (rear) centerlock
Bremse: Shimano M4100 4 (front) / 2 (rear) pistons
